Built to minimise cost without sacrificing performance, with outstanding accuracy
Built to minimise cost without sacrificing performance, the SC-01 measures true differential pressure at up to 1000 samples per second with outstanding accuracy. Following a device tare, the SC-01 delivers exceptional zero stability, achieving a total error band of just 0.05% of full scale over 24 hours. Data is available over USB or Ethernet (TCP), and the supplied logging software allows high-quality measurements to be acquired directly using any laptop or desktop computer.

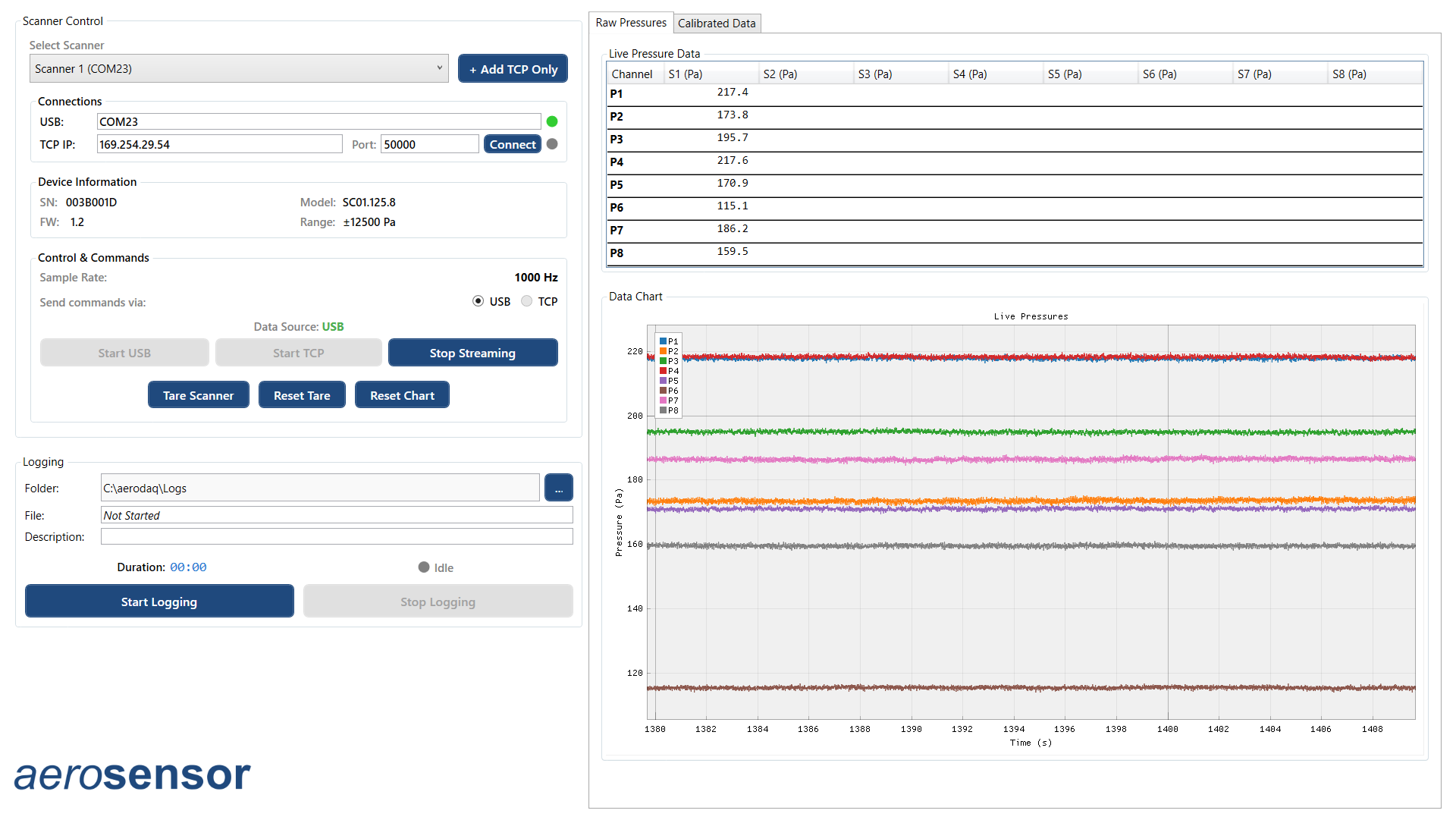

Seamless plug-and-play data acquisition with AeroDAQ
AeroDAQ turns the SC-01 into a truly plug-and-play pressure measurement system for Windows and Mac. Connect via USB or Ethernet for automatic device detection, quick configuration and immediate access to live pressure data.
Designed for high-performance data acquisition, AeroDAQ allows users to configure settings, update firmware, visualise live data and log directly to CSV at selectable rates from 50Hz to 1000Hz. Multiple scanners can be managed from one interface, with synchronised logging for larger measurement setups.
Resources
Specification Sheet
Specification sheet for our SC-01 Pressure Scanners.
User Manual
Hardware, Software and User Programming Manual for our SC-01 Pressure Scanners.
AeroDAQ for Windows
Configure and record data from your SC-01 Pressure Scanner with our Windows AeroDAQ software.
AeroDAQ for macOS
Configure and record data from your SC-01 Pressure Scanner with our macOS AeroDAQ software.
LabVIEW Drivers
Fully modifiable LabVIEW TCP driver and editable example for integrating your SC-01 Pressure Scanner into your own LabVIEW applications.
All Resources
Browse all resources available for our SC-01 Pressure Scanners.
Specifications
Power and electrical
- Power supply: 5V (USB)
- Current: 210mA
Environmental
- Compensated range: 0 to 50°C
- Operational range: -20 to +85°C
- Humidity: 0 to 95%
- Vibration: 15g
Pressure measurement performance
- Pressure ranges: +/-2.5kPa, +/-12.5kPa
- Proof pressure: 10kPa, 100kPa
- Resolution: 24-bit
- Accuracy: +/-0.05% FS
- Total error band: +/-0.10% FS
- Total error band after zero: +/-0.05% FS
- Measurement rate: 50–1000Hz (per chan.)

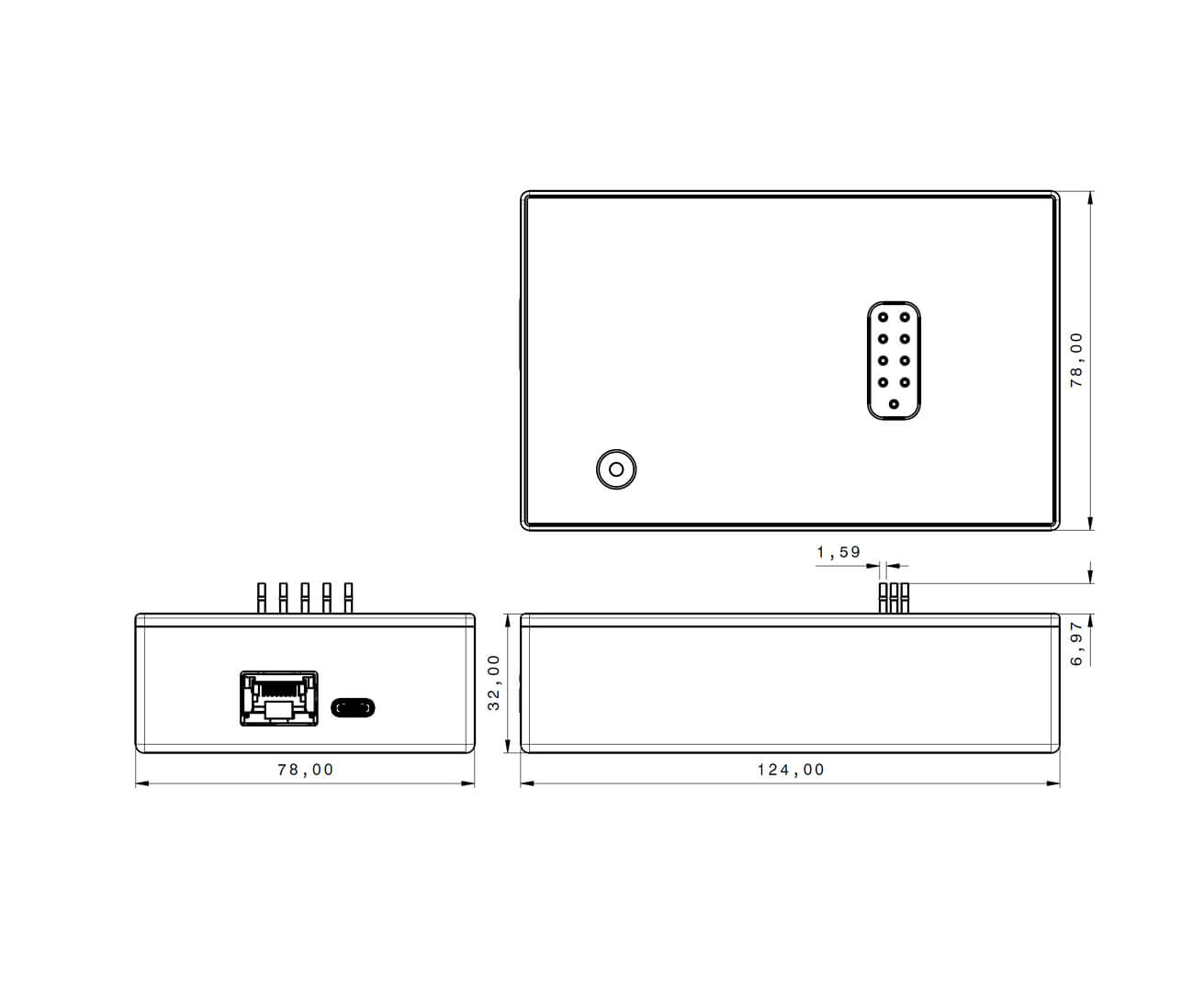

Mechanical
- Pneumatic connectors: 1.59mm tubulations
- Dimensions: 124 x 78 x 32mm
- Weight: 135g
