Micro-Kiel Probes

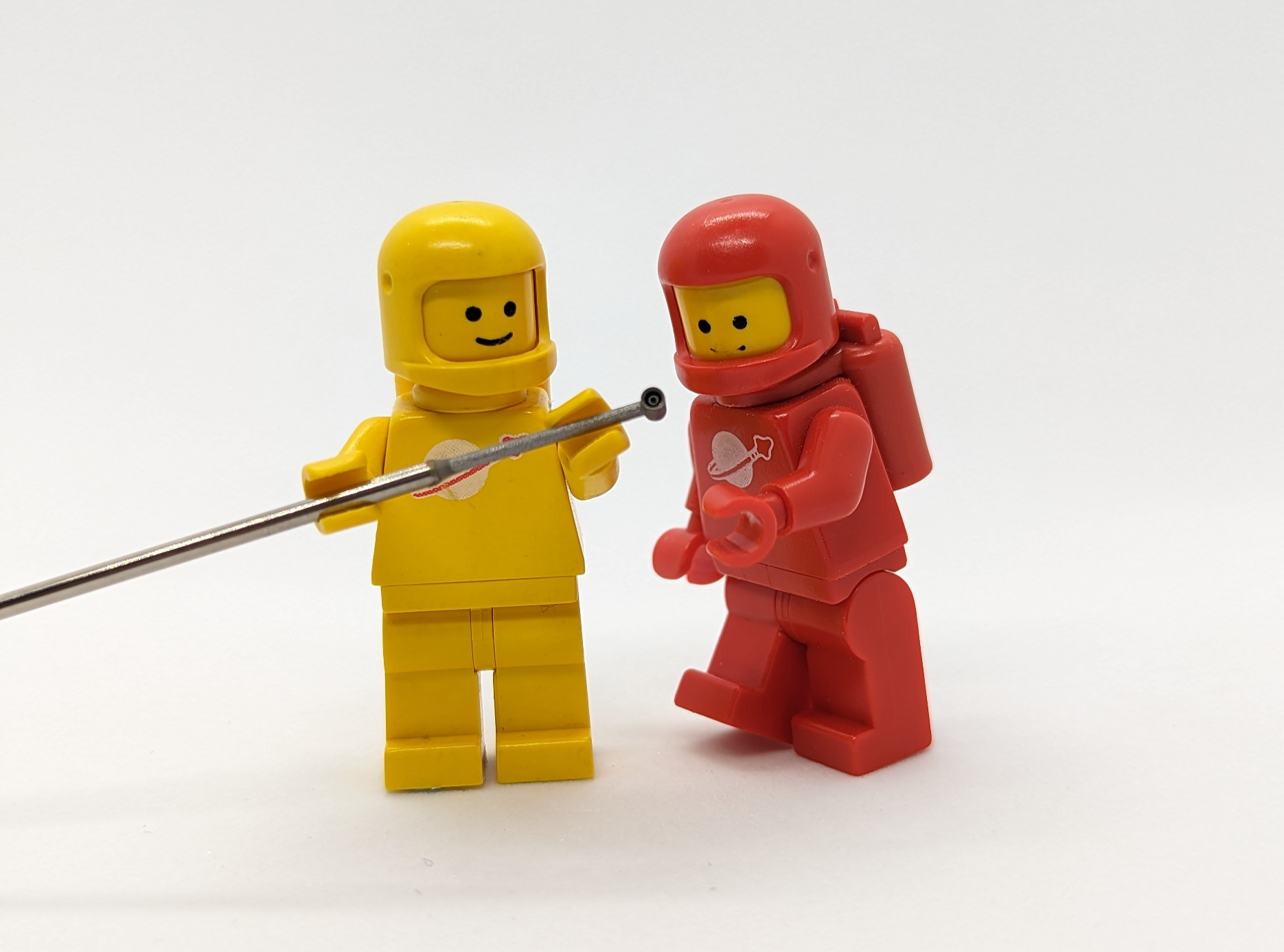

Through our ground-breaking work on additive manufacturing methods, we have developed techniques that allow us to build our tiny Micro-Kiel probes with a head diameter as small as 1.6mm. This allows accurate measurement of flows with minimal intrusion.
Due to their small size, these probes are one-piece with integrated probe head and stem.
Accurate total pressure measurement, minimum intrusion

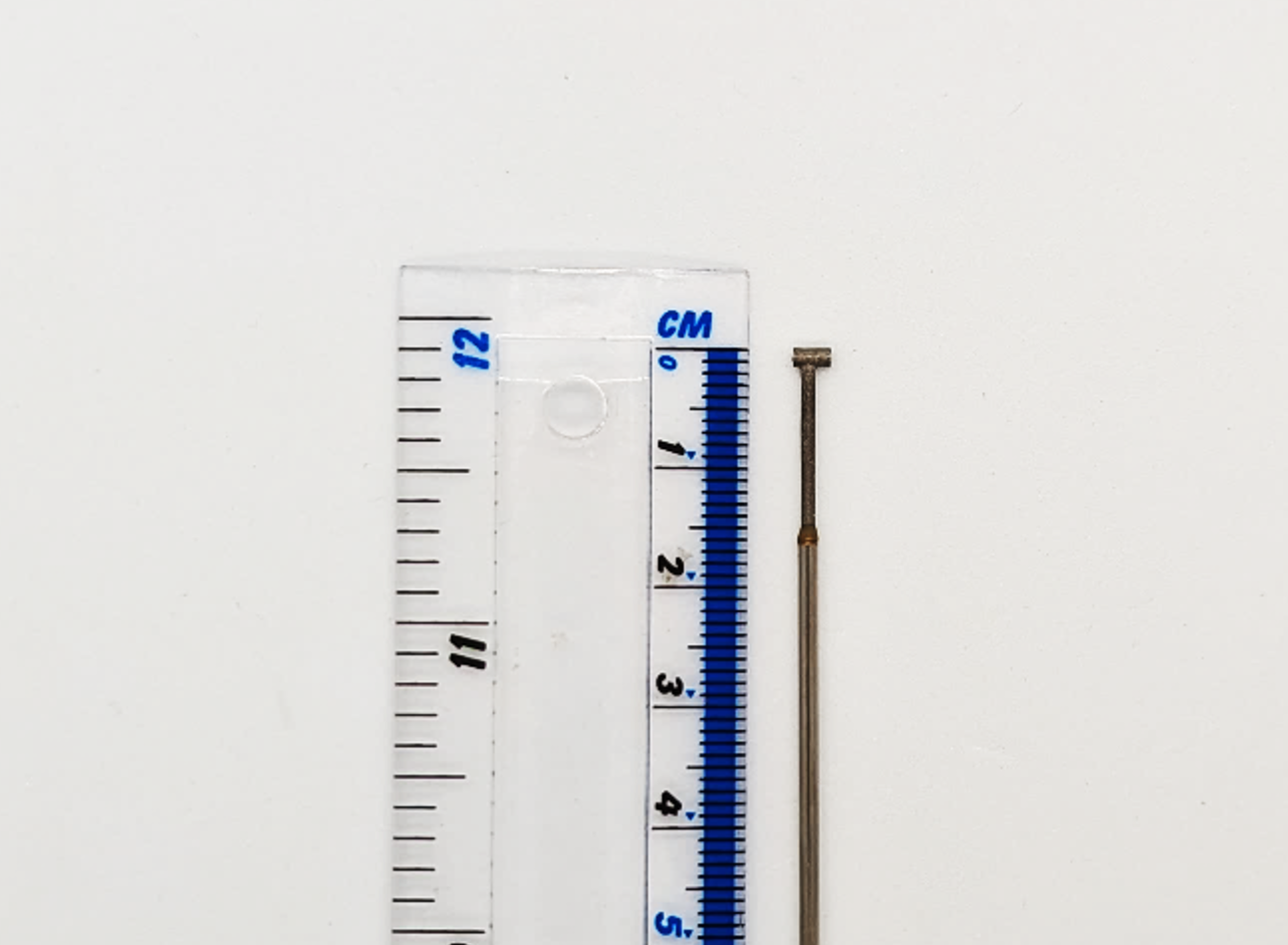

Probe head size as small as 1.6mm
Additive manufacturing = bespoke geometries
Range of materials
| Micro-Kiel Probe Key Facts | |
|---|---|
| Measured parameters | Total pressure |
| Dimensions | Minimum diameter 1.6mm |
| Speed ranges | Up to M1.0 |
| Yaw/pitch angle range | ±45° |
| Temperature range | Up to 1000°C |
| Material options | Stainless Steel, titanium, Inconel |
| Customisable options | Probe size Probe head / stem alignment (0° / 90°) Stem shape & length Mountings & connectors |
| Bespoke design services available | Arrays of multiple Kiel Probes Combination with other probes and sensors |
